Bag Dump Station Magnet
The Magnattack® Bag Dump Station Magnet supports metal control right where raw ingredients enter the process. The Rapidclean‑style modular design allows operators to lift only a few magnetic bars at a time, improving safety and streamlining cleaning efficiency.
Overview
Bag dump stations are one of the most common entry points for metal contamination. If not controlled immediately, metal fragments can move downstream, damaging equipment, compromising product quality, and increasing the risk of costly recalls.
The Magnattack® Bag Dump Station Magnet provides targeted metal separation right where raw ingredients enter your system. Built with operator safety and efficiency in mind, the unit features a modular Rapidclean-style design that is easier to handle than traditional heavy magnetic grates. Operators handle only a few magnetic bars at a time, reducing strain and lowering the risk of hand and finger injuries during cleaning or inspection.

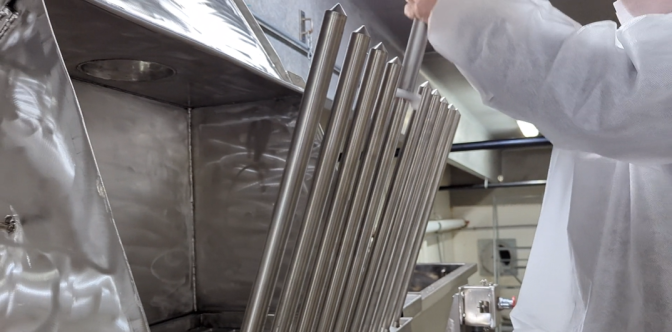

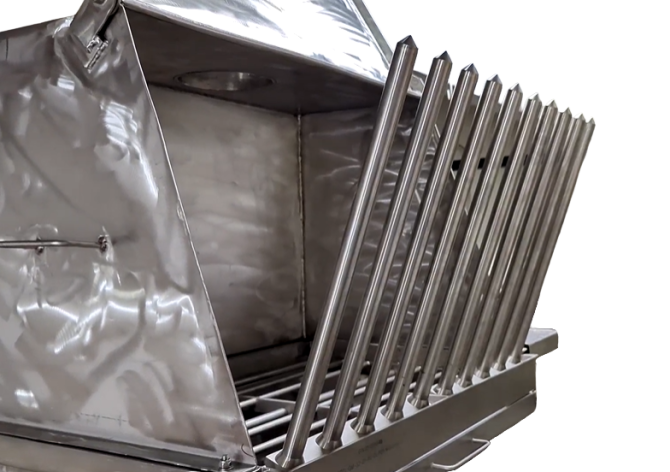

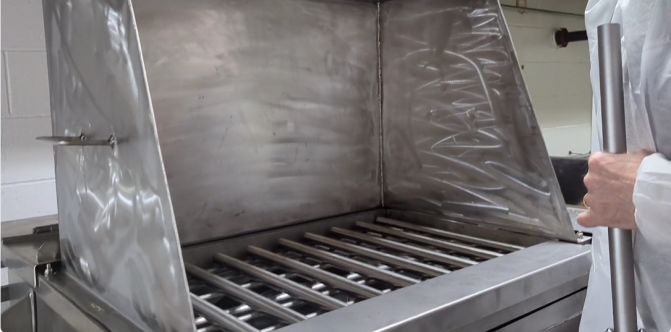

Each magnetic bar can be fully removed for cleaning in a separate area or lifted and secured in place while still attached. The open-ended bar design and integrated catch tray allow fast, thorough cleaning.

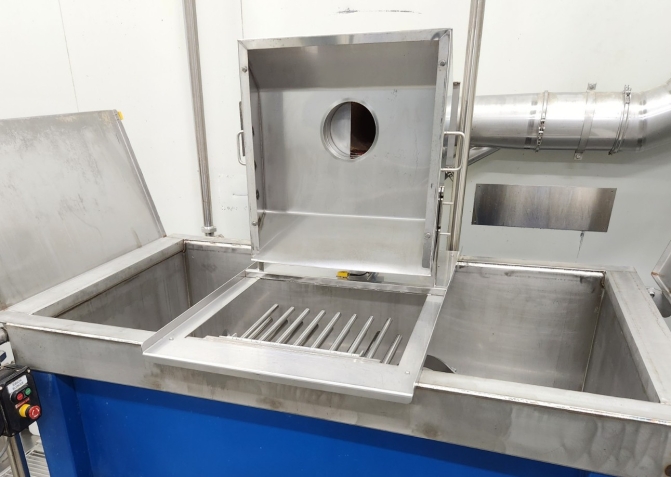

Installed directly at the bag dump station, this system delivers immediate metal capture and provides a clear visual reminder of a known risk zone. It strengthens preventive controls, supports compliance, and reinforces operator awareness at a critical point in the process.
Installation is quick, safe, and designed to integrate seamlessly into your existing workflow. Watch our video to learn more.
Key Features and Benefits:
- Design can be configured to be modular, allowing magnetic bars to be lifted in stages for safer operator handling
- Reduces manual handling risks during cleaning and inspection
- Magnetic bars can be fully removed for transport to a separate cleaning area, or safely lifted and secured in place while still attached
- Rapidclean Cleaning Tool enables safe, efficient cleaning with minimal contact
- Magnets are supplied in protective sleeves for safer handling
- Early metal capture improves product purity
- Prevents damage to downstream equipment
- Offloads downstream magnets
- Removable catch tray allows for easy collection of metal fragments and reduces risk of recontamination
- Versatile design – can be adapted to a range of different types of bag dump stations
Applications
- Dry products such as coffee, rice, grain, flour, seeds, sugar and spices
- Free-flowing products
- Traceability of individual ingredients prior to blending and transfer downstream
- Dairy-Grade models available for sensitive dairy and pharmaceutical powder applications
Install Options
- Lift-out style for conical hoppers and outlets accessible from above
- Modular design to suit a wide range of sizes
- Large intake grates on blenders and bag dump stations
- Inlet/outlet of hoppers
- Above packers on packing outlets
Certifications
- Certified by HACCP International. Fully compliant with HACCP International Food Safety Standard 0909MAGSEP 2-2021
Brochures
Accessories
Rapidclean® Cleaning Tool
The Magnattack® Rapidclean Cleaning Tool is a quick and efficient solution for removing contaminants from grate and grid magnets. Its user-friendly design ensures fast, safe, and thorough cleaning, minimizing downtime and maintaining optimal system performance.
Need Accessories or Replacement Parts?
If you need accessories or replacement parts for your Magnattack® equipment, simply reach out to our team for assistance. Contact us through our website or give us a call to discuss your specific needs, and we’ll ensure you receive the right parts quickly to keep your systems running smoothly.Contact Our Team
Need Safety Stickers or Signs?
Request safety labels and warning signage for your Magnattack® equipment by contacting our team today.Contact Our TeamYour Questions Answered:
Bag Dump Station Magnets
We understand that choosing the right product is an important decision, and you may have questions along the way. This FAQ section is here to provide clear, concise answers to the most common questions about the Bag Dump Station Magnets.
Whether you’re looking for details about its features, installation, maintenance, or troubleshooting, we’ve got you covered. If you don’t find what you’re looking for, feel free to reach out to our team—we’re always here to help!
Explore the FAQs below to get started.
What sizes do these come in?
Bag Dump Station Magnets are built to the exact size required for your intake area. Their modular design allows them to be supplied in sections, making installation and handling much easier.
Is a push tool available for cleaning?
Yes, a push tool and contaminant collection tray can be provided to enhance cleaning efficiency. These tools minimize unhygienic hand contact and reduce the risk of injuries from sharp metal fragments.
Is the RE80 Technology available with Magnattack Bag Dump Station Magnets?
Yes! Our Bag Dump Station Magnets are available in our RE80 rare earth magnet technology with 10,000 gauss to ensure high-strength and quality.
