IMC Metal Detector & Checkweigher

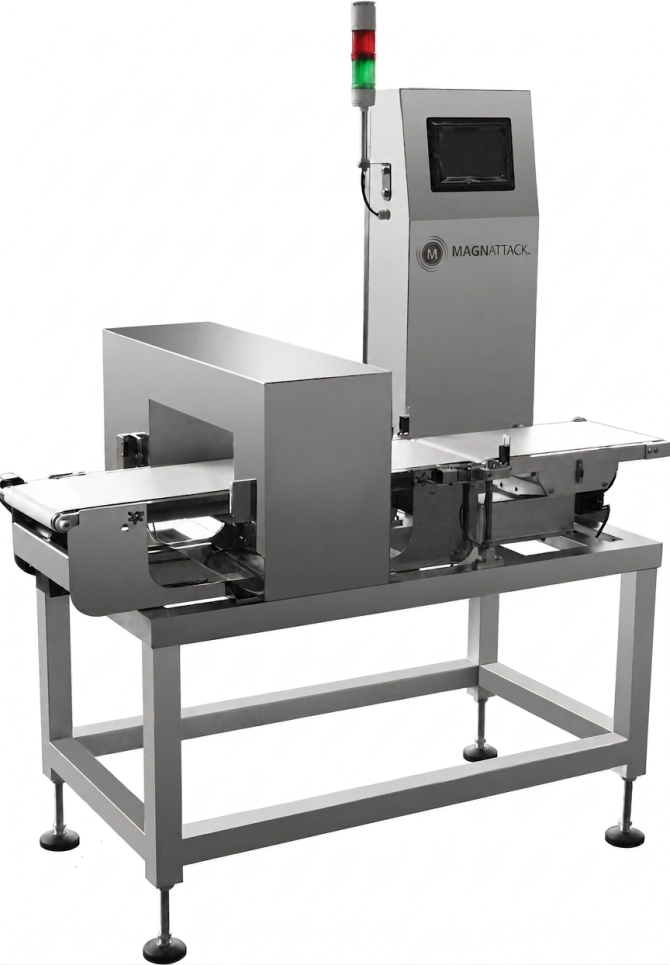

IMC Metal Detector & Checkweigher Combination Systems combine high-sensitivity metal detection and precision checkweighing in a single compact unit. Designed for modern food production environments, these systems verify product weight, detect metal contaminants, and automatically reject non-conforming products in a single pass. By combining two critical inspection functions into one space-saving solution, IMC systems help manufacturers improve efficiency, support HACCP and quality assurance programs, reduce rework, and maintain compliance with food safety and retailer requirements.
Overview
Features
- Compact design – ideal for workshops with limited space; saves space and installation costs.
- Dual inspection in one system – combines checkweighing and metal detection in a single compact solution.
- High-sensitivity metal detection – detects ferrous, non-ferrous, and stainless steel contaminants across a wide range of products.
- Easy installation – metal detector and checkweigher are connected in one frame, simplifying workshop installation.
- Precision weighing – supports accurate weight verification and helps reduce product giveaway.
- Auto-balancing ensures system always operates at peak capability.
- World leading componentry – SEW, Toyo and Oriental Motor conveyor motors.
- Multilingual user interface
- Multiple product programming and easy changeover
- Heavy-duty construction – full brushed 304 stainless steel construction (316 SS optional).
- USB data port – MS Excel format export.
- Password protected; multiple user authorization levels.
- Reject belt stop, 3-tier lamp and audible alarm.
- IP66 washdown-ready options – suitable for hygiene-critical and wet production environments.
- Integrated automatic reject systems – automatically removes contaminated or out-of-specification products from the production line.
- Visual and audible alarms – three-tier light tower and alarm indicators provide immediate operator notification.
- Quick and easy auto-learn product programming
- Composite product guide rails
Applications
- Meat and poultry products, including packaged cuts, ground meat, sausages, and marinated products
- Seafood products, including fillets, shrimp, frozen fish portions, and shellfish blends
- Dairy products, including cheese, yogurt, butter, and cream-based products
- Bakery products, snack foods, and confectionery items
- Prepared meals, frozen foods, and ready-to-eat products
- Automated packaging lines, including form-fill-seal, thermoforming, and tray-pack applications
- High-hygiene and washdown processing environments
Contaminants Detected
- Ferrous, non-ferrous, and stainless steel contaminants
- Non-ferrous metals, including aluminum, brass, copper, and tin
- Stainless steel contaminants, including grades 304 and 316
| IMC-230S | IMC-230L | IMC-300 | |
|---|---|---|---|
| Description: | IMC Combination Systems | IMC Combination Systems | IMC Combination Systems |
| Detection Range: | 20-2000g | 20-2000g | 20-5000g |
| Accuracy (3σ): | ±0.2g | ±0.2g | ±0.5g |
| Max Throughput: | 200 pcs/min | 155 pcs/min | 140 pcs/min |
| Metal Detector Window Height: | Customizable up to 330mm | Customizable up to 330mm | Customizable up to 330mm |
| Operator Interface: | Touchscreen | Touchscreen | Touchscreen |
| Product Width (max.): | 220mm | 220mm | 290mm |
| Product Length (max.): | 250mm | 350mm | 400mm |
| Product Memory: | 100 Programs | 100 Programs | 100 Programs |
| Max Belt Speed: | 70m/min | 70m/min | 70m/min |
| Reject Options: | Auto Reject (Optional: Airblast, Pushbar & Flipper Rejects) | Auto Reject (Optional: Airblast, Pushbar & Flipper Rejects) | Auto Reject (Optional: Airblast, Pushbar & Flipper Rejects) |
| Power Supply: | AC110V | AC110V | AC110V |
| Air Supply: | 58-116 psi | 58-116 psi | 58-116 psi |
| Working Environment: | Temperature: 32~104°F; Humidity: 30-85% (no dew) | Temperature: 32~104°F; Humidity: 30-85% (no dew) | Temperature: 32~104°F; Humidity: 30-85% (no dew) |
| IP Rating: | IP54, IP66 | IP54, IP66 | IP54, IP66 |
| Construction: | 304 Stainless Steel; Brushed or Mirrored Finish | 304 Stainless Steel; Brushed or Mirrored Finish | 304 Stainless Steel; Brushed or Mirrored Finish |
| Interval: | 0.1g | 0.1g | 0.2g |
| Data Export: | USB/Ethernet | USB/Ethernet | USB/Ethernet |
Note: Product models and specifications are subject to change. For more information, contact Magnattack
