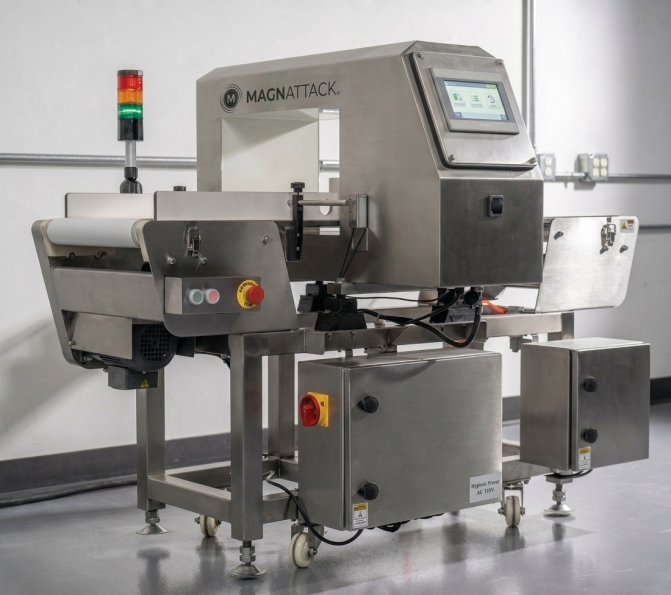

IMD Conveyorized
IMD Conveyorized Metal Detectors provide reliable inline inspection for products without metallic packaging. Designed for seamless integration into new or existing production lines, these systems inspect both packaged and unpackaged products while delivering high-sensitivity detection of ferrous, non-ferrous, and stainless-steel contaminants. Custom-sized probe heads, automatic reject options, and user-friendly operation make them suitable for a wide range of food processing and packaging applications.
Overview
Features
- High-sensitivity metal detection identifies ferrous, non-ferrous, and stainless steel contaminants across a wide range of products.
- Integrated automatic reject systems remove contaminated products without interrupting production.
- Auto-learning technology simplifies setup and stores product parameters for fast product changeovers.
- Custom-sized probe heads maximize detection sensitivity for specific products and applications.
- Flexible product handling accommodates packaged and unpackaged products in a variety of sizes and formats.
- User-friendly touchscreen interface with multilingual support and programmable product settings.
- Food-safe conveyor belts are designed for hygienic operation and direct product contact.
- Auto-balancing functionality helps maintain stable inspection performance and minimize downtime.
- USB and Ethernet connectivity support data collection, reporting, and traceability requirements.
- Durable stainless steel construction with IP-rated configurations available for washdown environments.
- Proven industrial componentry from leading suppliers including SEW, Toyo, and Oriental Motor supports long-term reliability and performance.
Applications
- Snacks and snack foods, including chips, pretzels, trail mix, and extruded products
- Confectionery and candy products
- Meat, poultry, seafood, and protein products
- Frozen foods, ready-to-eat meals, and prepared products
- Bakery products, including breads, pastries, crackers, and tortillas
- Fresh, frozen, and dried fruits and vegetables
- Sugar, spices, seasonings, and ingredient blends
Contaminants Detected
- Ferrous metals including carbon steel, cast iron, nickel, and chromium
- Non-ferrous metals including aluminum, brass, copper, tin, silver, gold, and tungsten
- Stainless steel contaminants, including grades 304 and 316
| IMD-20xx | IMD-30xx | IMD-40xx | IMD-50xx | IMD-60xx | IMD-70xx | IMD-80xx | |
|---|---|---|---|---|---|---|---|
| Detection Height: | 5 – 50cm | 5 – 50cm | 5 – 50cm | 5 – 50cm | 5 – 50cm | 5 – 50cm | 5 – 50cm |
| Detection Width: | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Operator Interface: | Touchscreen | Touchscreen | Touchscreen | Touchscreen | Touchscreen | Touchscreen | Touchscreen |
| Conveyor Length: | 1200mm, 1500mm, 1800mm; custom options available | 1200mm, 1500mm, 1800mm; custom options available | 1200mm, 1500mm, 1800mm; custom options available | 1200mm, 1500mm, 1800mm; custom options available | 1200mm, 1500mm, 1800mm; custom options available | 1200mm, 1500mm, 1800mm; custom options available | 1200mm, 1500mm, 1800mm; custom options available |
| Conveyor Belt Width: | 160mm | 260mm | 360mm | 460mm | 560mm | 660mm | 760mm |
| Belt Speed: | Variable Speed; up to 110m/min | Variable Speed; up to 110m/min | Variable Speed; up to 110m/min | Variable Speed; up to 110m/min | Variable Speed; up to 110m/min | Variable Speed; up to 110m/min | Variable Speed; up to 110m/min |
| Alarm/Reject: | Standard Audible and Light Alarm, Belt Stop (Optional: Automatic Reject) | Standard Audible and Light Alarm, Belt Stop (Optional: Automatic Reject) | Standard Audible and Light Alarm, Belt Stop (Optional: Automatic Reject) | Standard Audible and Light Alarm, Belt Stop (Optional: Automatic Reject) | Standard Audible and Light Alarm, Belt Stop (Optional: Automatic Reject) | Standard Audible and Light Alarm, Belt Stop (Optional: Automatic Reject) | Standard Audible and Light Alarm, Belt Stop (Optional: Automatic Reject) |
| Power Supply: | AC110V | AC110V | AC110V | AC110V | AC110V | AC110V | AC110V |
| Working Environment: | Temperature: 32~104°F; Humidity: 30-85% (no dew) | Temperature: 32~104°F; Humidity: 30-85% (no dew) | Temperature: 32~104°F; Humidity: 30-85% (no dew) | Temperature: 32~104°F; Humidity: 30-85% (no dew) | Temperature: 32~104°F; Humidity: 30-85% (no dew) | Temperature: 32~104°F; Humidity: 30-85% (no dew) | Temperature: 32~104°F; Humidity: 30-85% (no dew) |
| IP Rating: | IP30, IP54, IP65 | IP30, IP54, IP65 | IP30, IP54, IP65 | IP30, IP54, IP65 | IP30, IP54, IP65 | IP30, IP54, IP65 | IP30, IP54, IP65 |
| Construction: | SUS304 Sandblasted | SUS304 Sandblasted | SUS304 Sandblasted | SUS304 Sandblasted | SUS304 Sandblasted | SUS304 Sandblasted | SUS304 Sandblasted |
| Data Export: | USB/Ethernet | USB/Ethernet | USB/Ethernet | USB/Ethernet | USB/Ethernet | USB/Ethernet | USB/Ethernet |
Note: Product models and specifications are subject to change. For more information, contact Magnattack
