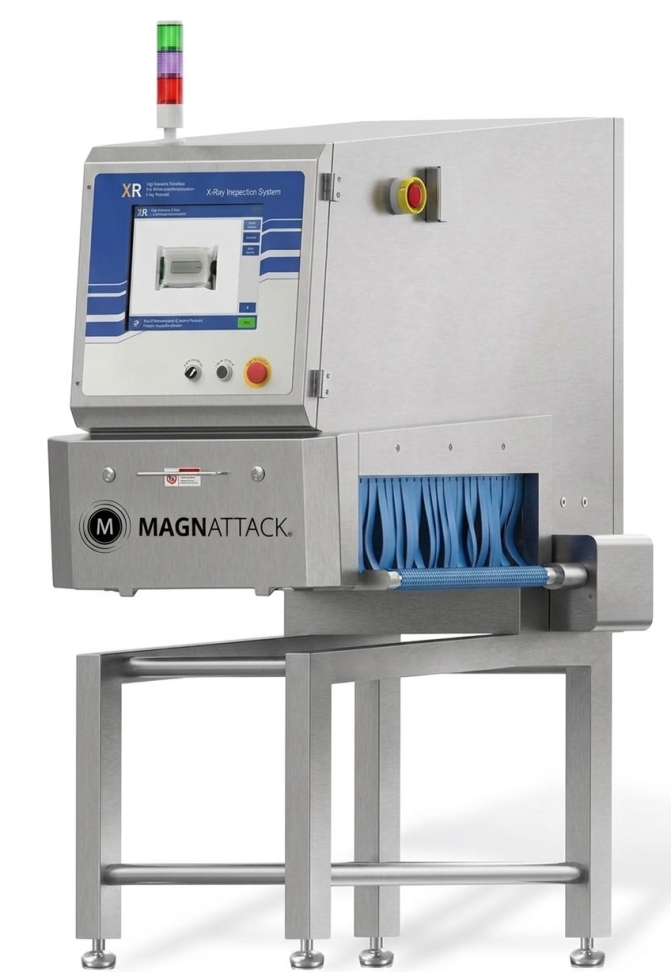

XR X-Ray Inspection Systems
XR X-Ray Inspection Systems are used to achieve advanced levels of inspection across a wide range of products. Use them to detect even the smallest contaminants, including metals, glass, hard plastic, rubber, ceramic, bone, and other mid- or high-density materials.
Powerful generators allow the XR series to detect foreign bodies down to 0.2mm, expanding the range of what was traditionally thought detect able with x-ray inspection. Even materials like plastic conveyor belting, small bones in poultry or red meat, rubber/gasket pieces, and select organic materials are now successfully detectable.
When it comes to inspection of food and beverage products, the XR simply can’t be beat!
Overview
Features
- Superior sensitivity – able to detect the smallest possible metal and non-metal contaminants; find stainless steel down to 0.3mm and steel wire down to 0.2mm x 2mm
- Defect inspection – detect breakage, displacement, and cracks
- Auto-learning function for quick new product set-up
- Auto-shielding function will shield parts of product or package to enable inspection (e.g., aluminum clips on sausages, products packed in metal cans, etc.)
- Ultra-flexible design and functionality – suitable for a wide range of product types and package formats, including metal cans and foil pouches.
- Highly configurable system design with customizable generators, detector configurations, software settings, and inspection algorithms to suit specific applications.
- Easily view and export detailed data logs on production rates, times and contamination %s; download via Ethernet or USB
- User-friendly Windows-based software – quickly change between programs; real-time images of the current product allow for quick location and identification of contaminants
- Controlled access – passwords for operator / administrator access
- World leading componentry – VJT, Siemens, and Schneider
- Heavy-duty construction – 304 stainless steel with mirror finish (optional: sand blasted finish, IP69K construction, etc.)
- Automated operation – automatically identifies suspected contaminants and, when paired with an optional reject conveyor, removes affected product without continuous operator monitoring.
- Optional reject conveyor automatically removes any packages suspected of having contaminants
- Remote technical and programming support helps maximize system uptime and maintain inspection performance.
- Easy to use and clean – intuitive Windows-based interface with simple assembly and disassembly for efficient operation and maintenance.
Applications
- Packaged and unpackaged food products
- Metal cans, foil pouches, and other challenging packaging formats
- Nuts, seeds, and ingredient products requiring high-sensitivity inspection
- Meat, poultry, seafood, and processed protein products
- Bakery, confectionery, snack foods, and beverage products
Contaminants Detected
- Ferrous, non-ferrous, and stainless-steel contaminants
- Glass, ceramic, and stone fragments
- Bone, rubber, gasket materials, and hard plastics
- Certain organic foreign materials
| XR-4080 | XR-4080SH | XR-5080SH | XR-6080SH | XR-5080XH | XR-6080XH | |
|---|---|---|---|---|---|---|
| Description: | XR Standard X-Ray | XR Standard X-Ray | XR Standard X-Ray | XR Standard X-Ray | XR Standard X-Ray | XR Standard X-Ray |
| X-Ray Generator: | MAX 80kV, 350W | MAX 100kV, 480W | MAX 100kV, 480W | MAX 100kV, 480W | MAX 80kV, 210W | MAX 80kV, 210W |
| Inspection Width: | 400mm | 400mm | 500mm | 600mm | 550mm | 655mm |
| Inspection Height: | 160mm | 220mm | 250mm | 360mm | 360mm | 505mm |
| Conveyor Speed: | 10-60m/min | 10-60m/min | 10-40m/min | 10-40m/min | 10-40m/min | 10-40m/min |
| Operating System: | Windows Professional | Windows Professional | Windows Professional | Windows Professional | Windows Professional | Windows Professional |
| X-Ray Emissions: | < 1 μSv/h (CE standard) | < 1 μSv/h (CE standard) | < 1 μSv/h (CE standard) | < 1 μSv/h (CE standard) | < 1 μSv/h (CE standard) | < 1 μSv/h (CE standard) |
| IP Rating: | IP66 Food-Contact Surfaces (Available: IP69K Whole-Body Construction) | IP66 Food-Contact Surfaces (Available: IP69K Whole-Body Construction) | IP66 Food-Contact Surfaces (Available: IP69K Whole-Body Construction) | IP66 Food-Contact Surfaces (Available: IP69K Whole-Body Construction) | IP66 Food-Contact Surfaces (Available: IP69K Whole-Body Construction) | IP66 Food-Contact Surfaces (Available: IP69K Whole-Body Construction) |
| Working Environment: | Temperature: 32-104°F; Humidity: 30-85% (no dew) | Temperature: 32-104°F; Humidity: 30-85% (no dew) | Temperature: 32-104°F; Humidity: 30-85% (no dew) | Temperature: 32-104°F; Humidity: 30-85% (no dew) | Temperature: 32-104°F; Humidity: 30-85% (no dew) | Temperature: 32-104°F; Humidity: 30-85% (no dew) |
| Reject Options: | Sound and Light Alarm; Belt Stop (Optional: Rejector) | Sound and Light Alarm; Belt Stop (Optional: Rejector) | Sound and Light Alarm; Belt Stop (Optional: Rejector) | Sound and Light Alarm; Belt Stop (Optional: Rejector) | Sound and Light Alarm; Belt Stop (Optional: Rejector) | Sound and Light Alarm; Belt Stop (Optional: Rejector) |
| Power Supply: | 220V | 220V | 220V | 220V | 220V | 220V |
| Construction: | Stainless 304 | Stainless 304 | Stainless 304 | Stainless 304 | Stainless 304 | Stainless 304 |
| Operator Interface: | 15” Touchscreen HMI | 15” Touchscreen HMI | 15” Touchscreen HMI | 15” Touchscreen HMI | 15” Touchscreen HMI | 15” Touchscreen HMI |
| Data Export: | USB/Ethernet | USB/Ethernet | USB/Ethernet | USB/Ethernet | USB/Ethernet | USB/Ethernet |
| Finish: | Mirror Polish/Sandblasted | Mirror Polish/Sandblasted | Mirror Polish/Sandblasted | Mirror Polish/Sandblasted | Mirror Polish/Sandblasted | Mirror Polish/Sandblasted |
Note: Product models and specifications are subject to change. For more information, contact Magnattack
